Description:

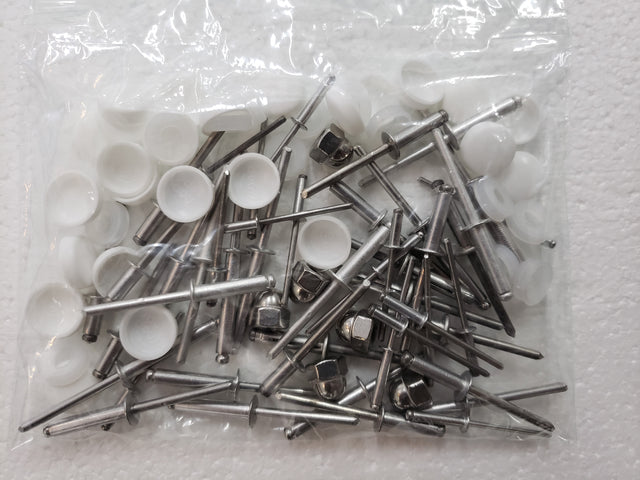

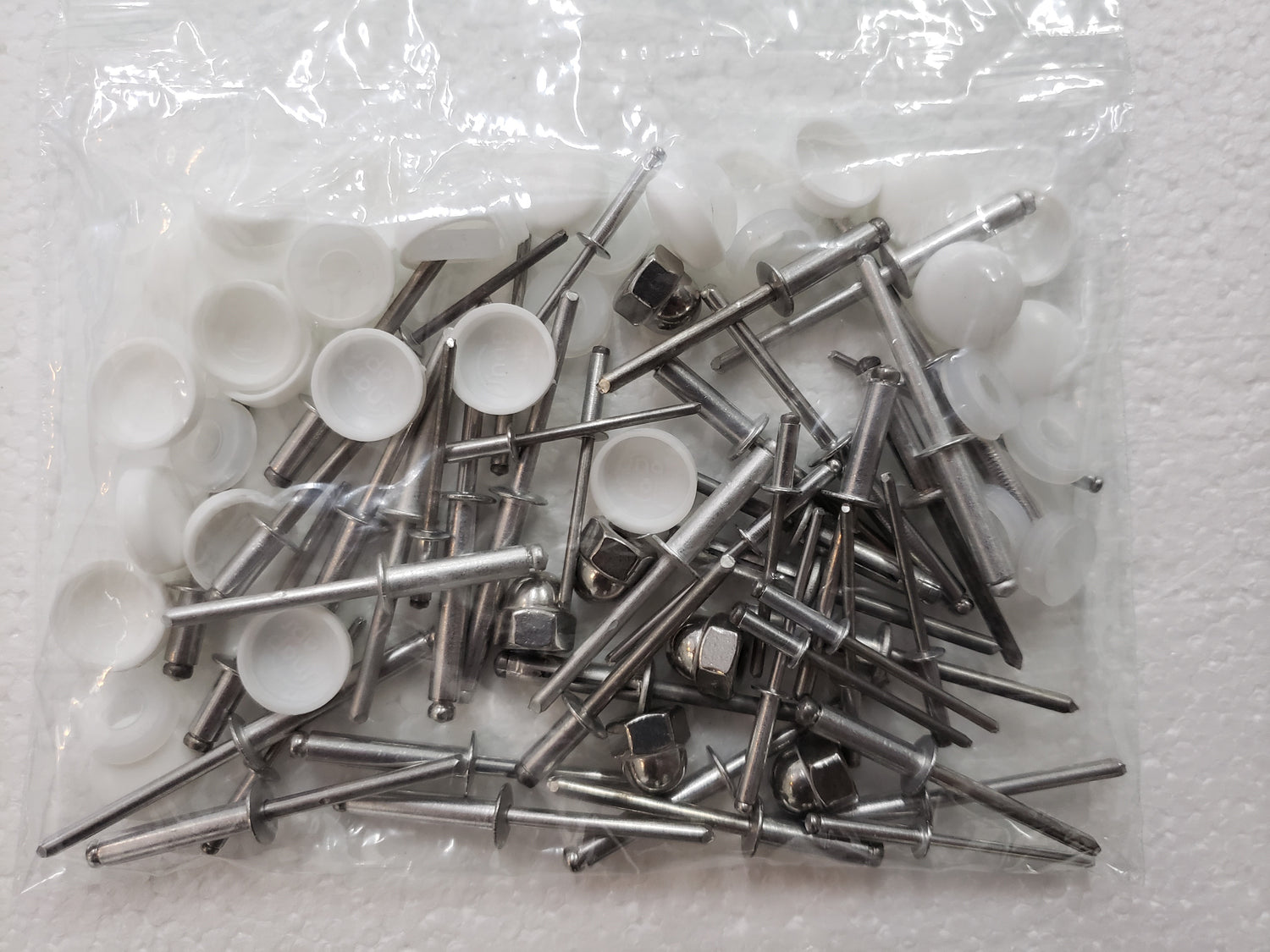

The Rivet kit includes all needed Rivet's for the Casita trailer. Dimensions are under the Rivet name in Red.

24   white snap caps

24   snap cap bases

6   Acorn Nuts

6   Long # 616 rivets

Diameter- 3/16"

Grip Range- 0.876" - 1.000"

Drill Size- #11

6    special spread rivets

Diameter- 3/16"

Grip Range- 3/4"

6   # 68 Rivets

Diameter- 3/16"

Grip Range- 0.376"- 0.500"

Drill Size- #11

3   # 612 rivets

Diameter- 3/16"

Grip Range- 0.626" - 0.750"

Drill Size- #11

3  # 64 Rivets

Diameter- 3/16"

Grip Range- 0.126" - 0.250"

Drill Size- #11

3    # 48 rivets

Diameter- 1/8"

Grip Range- 0.376" - 0.500"

Drill Size- #30

3    # 46 rivets

Diameter- 1/8"

Grip Range- 0.313" - 0.375"

Drill Size #30

3    # 44 rivets

Diameter- 1/8"

Grip Range- 0.188" - 0.250"

Drill Size- #30
